Guided by the principles of FM Data Sheet 1-44 (Damage Limiting Construction), TKC’s explosion-resistant building solutions are engineered as an integrated pressure-management system, combining a dual mechanism of active energy release and passive structural restraint.
Rather than relying on assumptions, TKC applies scientific calculation and validated engineering logic to ensure explosion energy is released in a predictable, controlled, and verifiable manner. By seamlessly integrating explosion protection with fire safety strategies, TKC delivers comprehensive, code-aligned solutions for high-risk industrial and hazardous material environments.
Product
Pressure management systems: Active Release + Passive Restraint per FM 1-44.

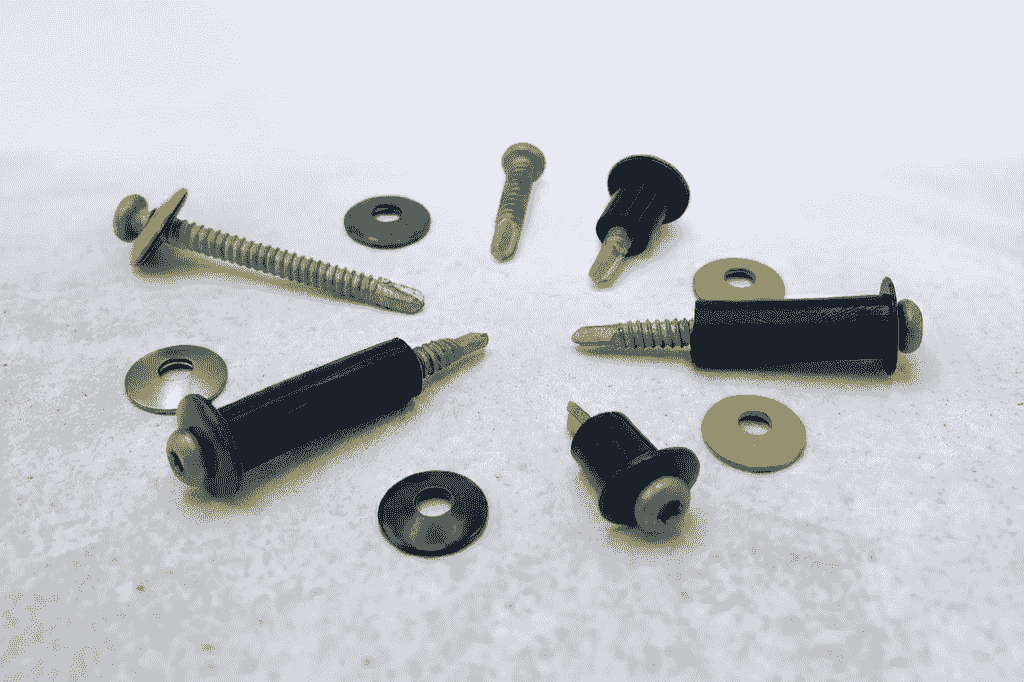

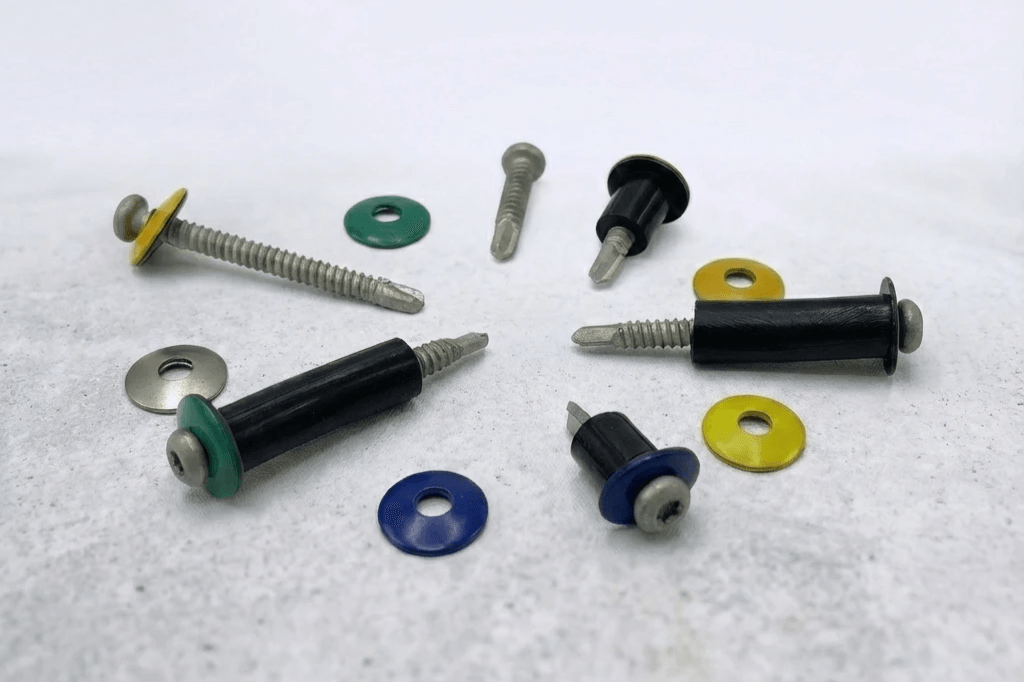

TKC-01 Explosion Venting Fasteners
The precision trigger of active explosion venting
TKC-01 replaces the uncertainty of conventional bolts with a precisely calibrated release mechanism, enabling millisecond-level vent activation and transforming potential structural failure into a reliable safety function.
- Calibrated break-load: 700 N
- FM 4440 certified
- Patented anti-fatigue design; passed 1,500-hour salt-spray testing

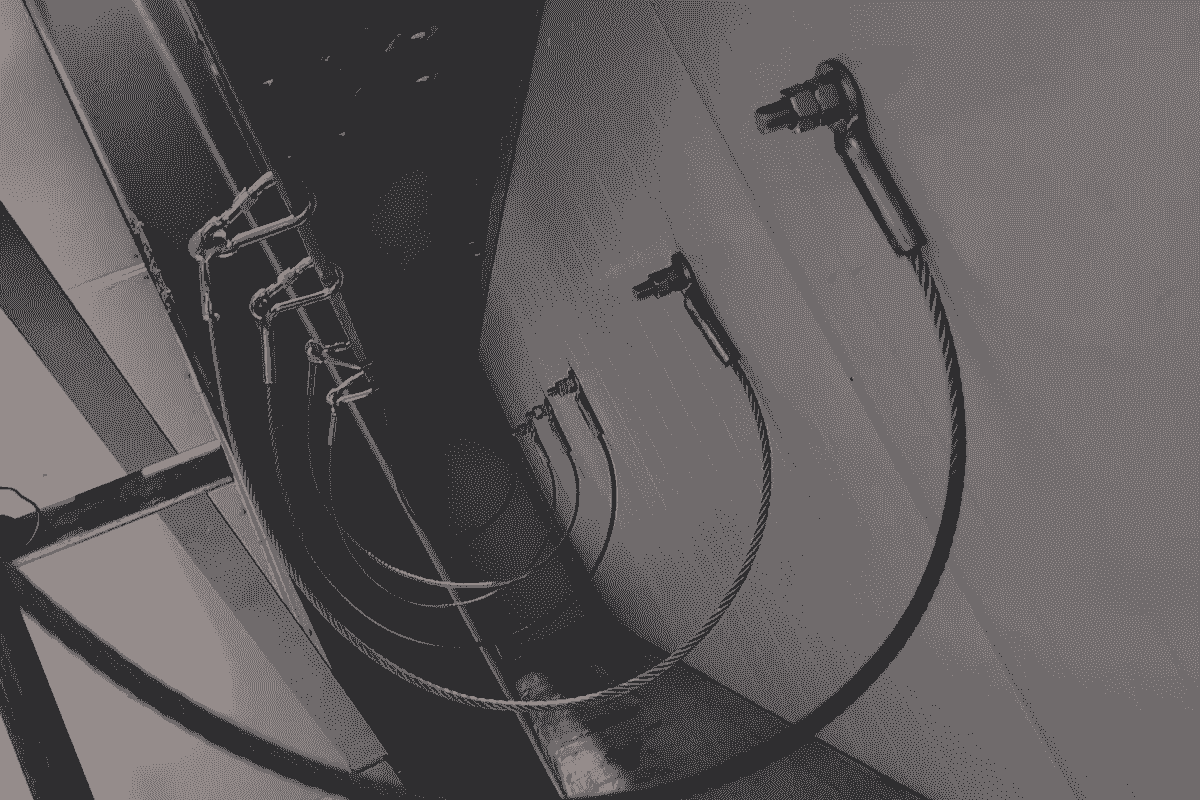

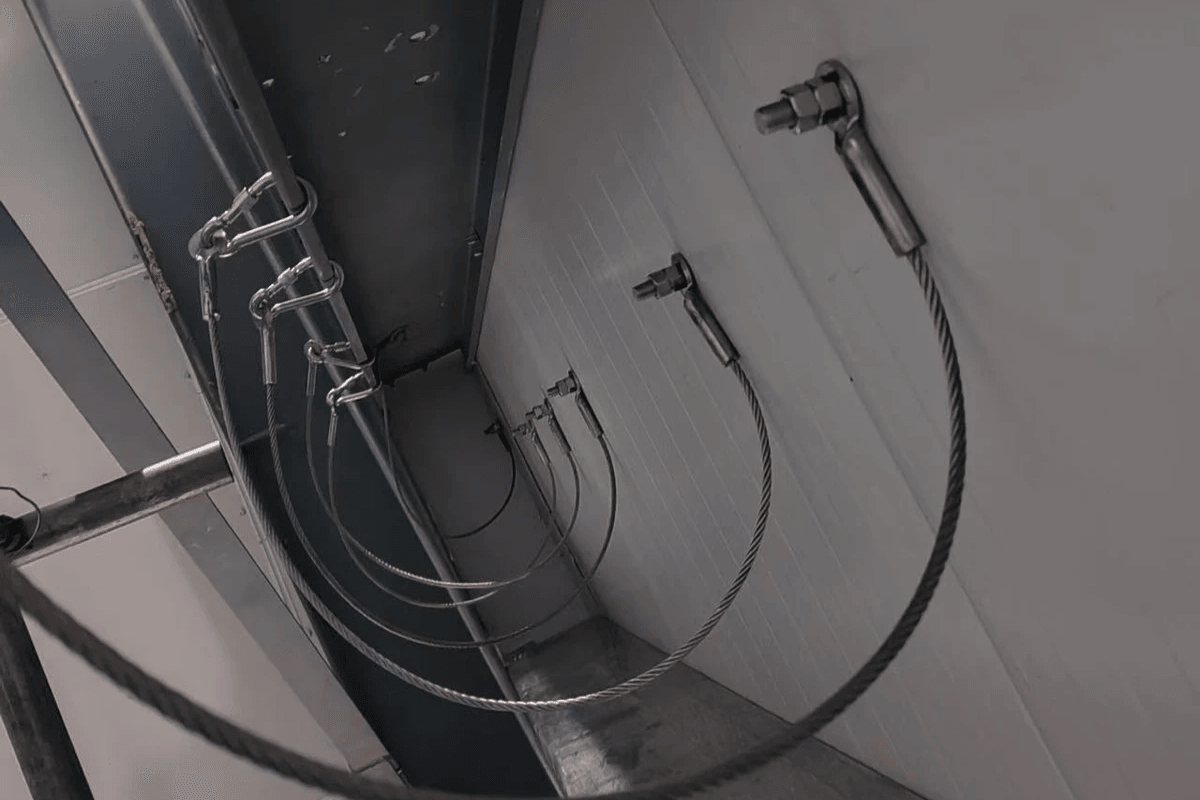

TKC-JS900 Tethered Cable
The passive restraint that prevents secondary hazards
At the moment of vent release, the TKC-JS900 restrains the panel and guides its movement in a controlled manner, preventing high-mass components from becoming dangerous projectiles.
- Mandatory component under FM 1-44 systems
- Constructed from SUS304 / SUS316 stainless steel
- Minimum breaking strength ≥ 20 kN

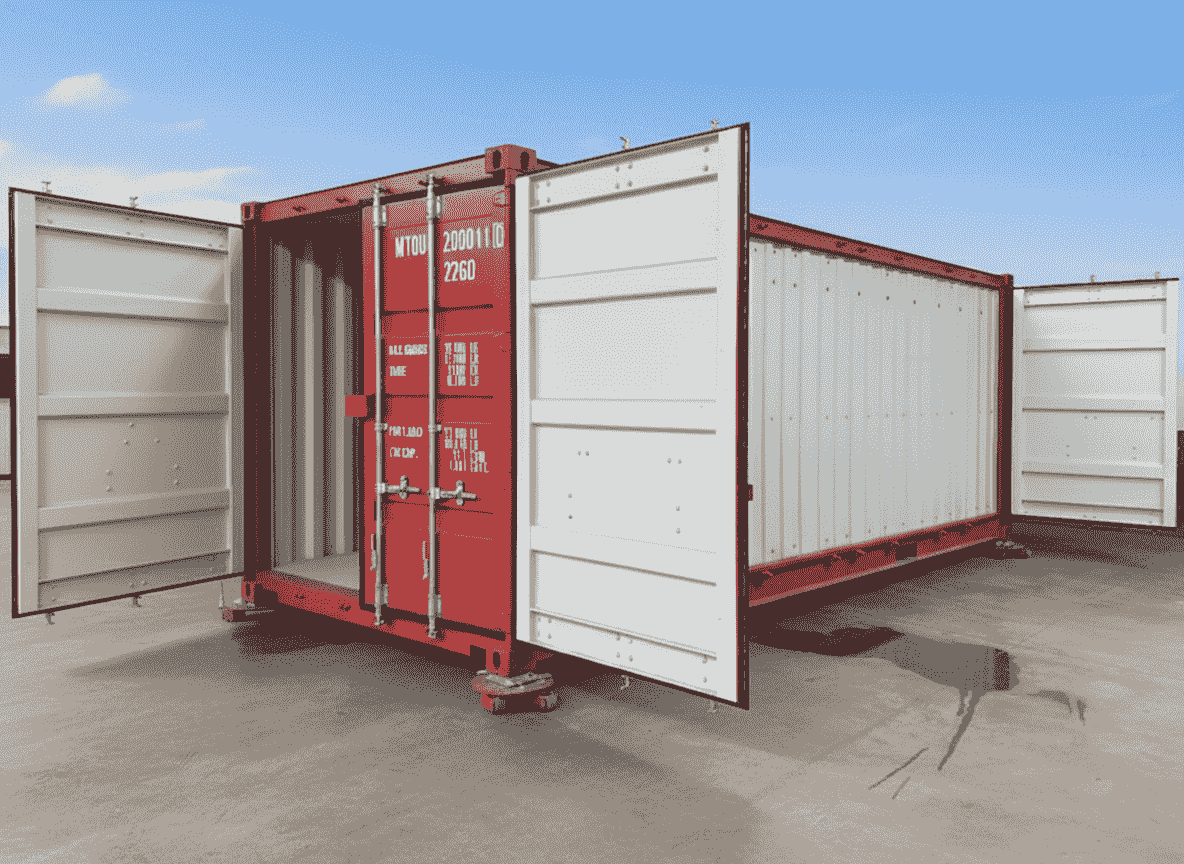

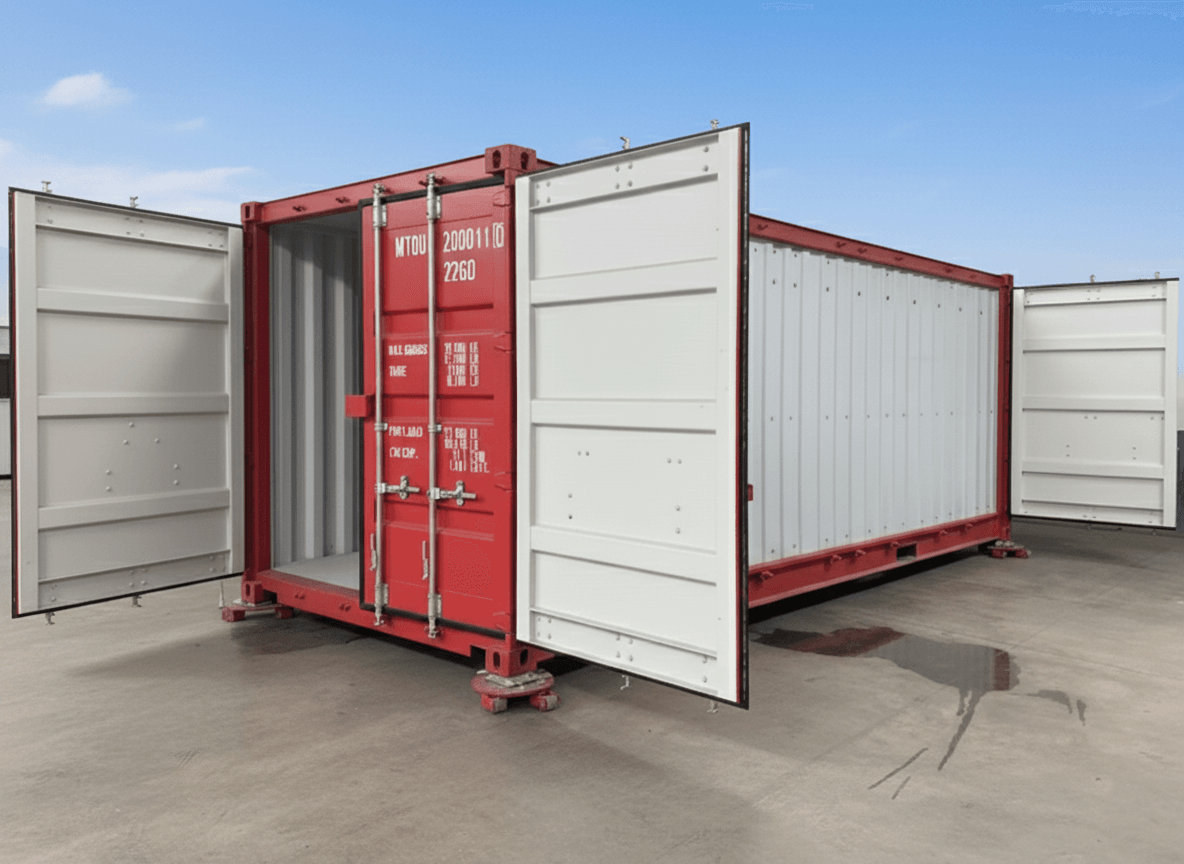

ModularChemical Storage Unit (PILSB)
A safety bunker integrating active and passive protection
The PILSB is a rapidly deployable, modular storage solution that combines controlled internal venting with high external blast resistance, meeting strict segregation and compliance requirements for hazardous materials.
- Vent activation pressure: ≤ 1.92 kPa
- External overpressure resistance: ≥ 300 kPa
- Integrated FM Approved venting technology
